Please allow 3 or 4 working days for dispatch of this product

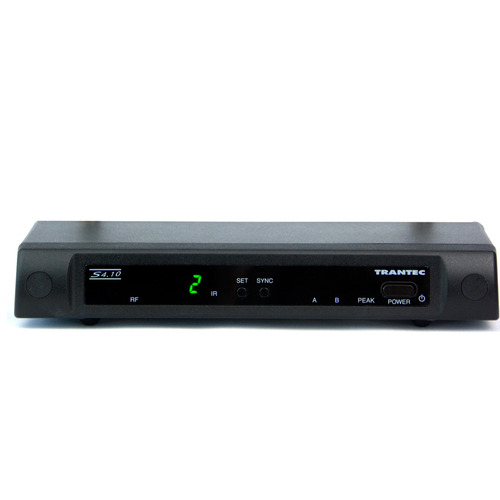

Trantec S4.10 Radio Microphone Receiver with 16 selectable
frequencies and up to 10 simultaneous use channels -
power supply & aerials not included.
The S4.10 now features auto channel frequency syncing of the transmitter to the receiver.
Available on channel 38 (606-614MHz) or channel 70 (863-865MHz) with fully synthesized PLL quartz tuning technology.
Trantec product code: channel 38 S4.10-RXA-EB-GG3 / channel 70
S4.10-RXA-EB-GD4
| Specifications | |
|
Trantec S4.10 Receiver
|
|
| Diversity Reception | Antenna Diversity |
| Sensitivity
|
10uV at 45dBA, S/N |
| Squelch
|
Tone SQ, Carrier SQ, Noise SQ
|
| Audio Frequency Response
|
50Hz – 15kHz |
| Audio Output Level
|
Balanced (XLR socket): -20dBu |
| Unbalanced (1/4" jack socket): 10dBu
|
|
| Power Supply
|
12 VDC 500mA - power supply not included |
| Dimensions
|
215(W) x 39(H) x 102(D)mm
|
| Weight
|
480g
|
