Trantec S5.5 Racked'n'Ready with 10 radio mics
Code: 485R10
Quantity Pricing
Choose quantity and options
Please allow around a working week for dispatch of this product
Description

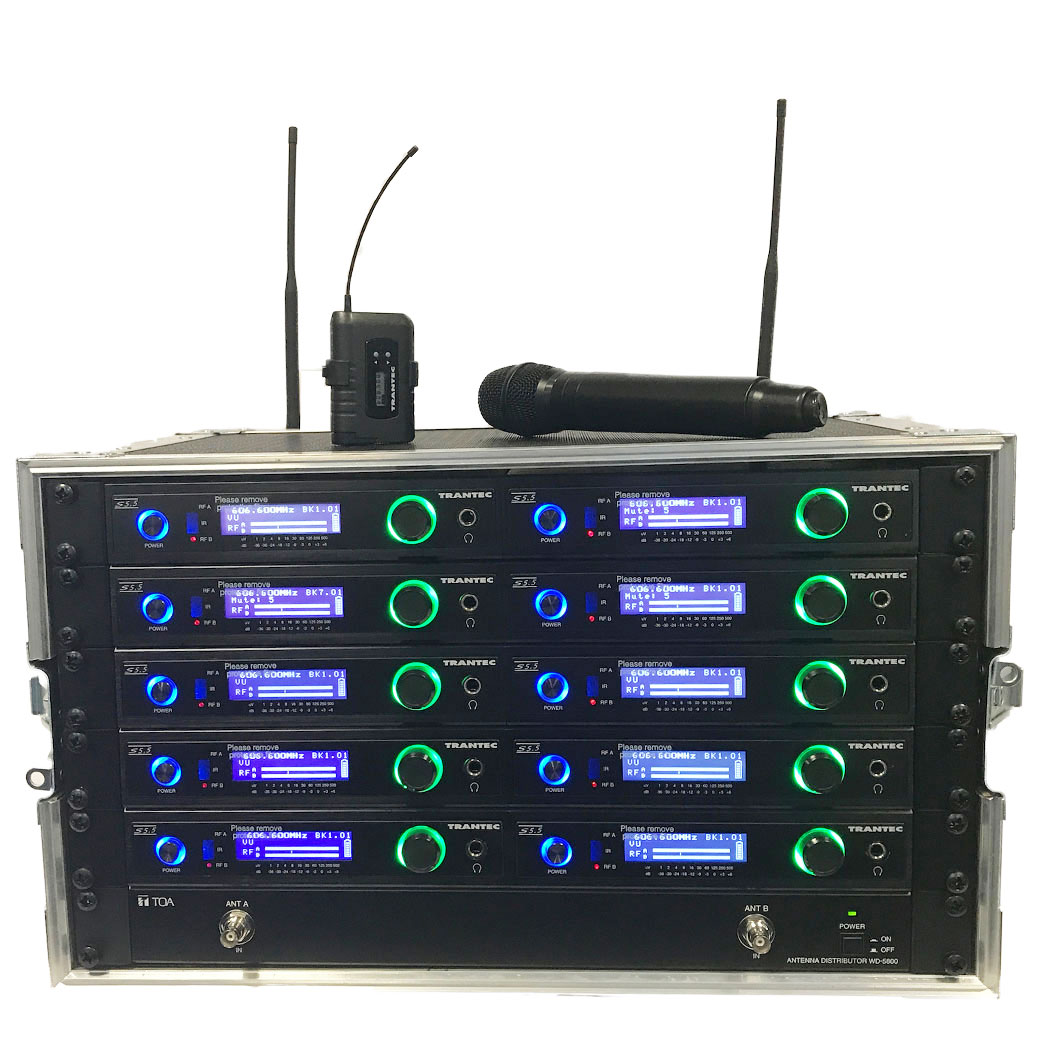

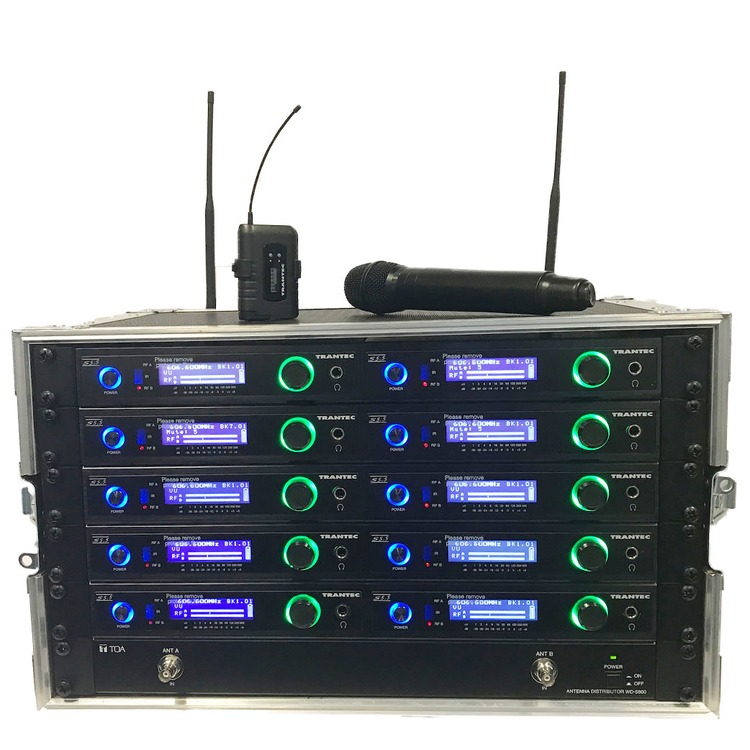

Trantec S5.5 radio microphone system with 10 receivers with ADU mounted in a 19" flight case plus 10 transmitters with your choice of beltpack transmitters with X2 microphones or handheld transmitters - 606-638MHz, channel 38-41
FEATURES:
- Up to 24 simultaneous channels of true diversity operation
- USB based computer monitoring
- Simple programming of transmitters via Infra-red
- Credit card size beltpack transmitters
- Single AA transmitter battery life of over 10 hours
- Professional metal enclosures on both transmitters and receivers
- 19” professional flight case with built-in antennae distribution and power supply as standard.
- Headset microphones can be supplied as an extra
ASSEMBLED PACKAGES INCLUDE:
- 4 x Trantec S5.5 receivers
- 4 x Trantec S5.5 transmitters in any combination of handheld or beltpack (includes X2 mic)
- Antenna
- Power supply
- Rack mounting kits
- ADU
- 2 x stub antennae
- 19" professional flight case
UPGRADED FEATURES:
- All black fascia designs with distinctive colour backlit indicators
- Stronger belt clip
- Handheld transmitters with removable capsules - condenser supplied as standard
- RF link out for cascading receivers (Racks up to 8-way with no ADU!)
- RF Walk Test added to Software Ver1.6
- Monitoring software now compatible with Windows versions 7,8,10
The S5.5 is an advanced UHF system that allows you to simultaneously operate up to 24 channels per frequency band and all this at a price-performance ratio that you will find hard to match.
This radio microphone system requires an appropriate operating licence. For further information please visit the OFCOM website.
Trantec product code: S5.5L-G1U-RACK-10W
Details
Technical Specifications
S5.5 System Specification
| Frequency Bands available | GI 606-638MHz |
| RF Switching BW | 36MHz typical |
| RF grid spacing | 25kHz |
| RF Bandwidth | < 200kHz |
| AF Frequency response | 60Hz - 20kHz |
| AF Distortion | < 0.8% at nom deviation 22kHz |
| AF Dynamic range | >110dBA |
| AF Noise Reduction | Trantec Proprietary |
| Temperature Range | -10ºC to +55ºC |
S5.5 RX Receiver
| Type | Dual Diversity featuring PLL Dual conversion receivers |
| IF Freq | 1st IF 55.875MHz/2nd IF 10.7MHz |
| Sensitivity | < 1uV/12dB SINAD |
| Squelch Sensitivity | 6 - 36dBuV |
| Tone Frequency | 32.768kHz |
| 1st Image | >70dB |
| RSSI range | 10 steps 30dB range |
| Antenna Inputs/Outputs | BNC 50 Ohms |
| AF Switches | Low Cut - High Boost - Phase Reversal |
| AF Output level | XLR Line + 15dBm max. /XLR Mic -25dBm max. |
| Antenna Phantom | 9V @ 60mA short circuit protected on each RF port |
| Bank Specification | 10 Banks x 24 Channels |
| Infra-Red Link | Range 15 cm max |
| Computer Interface | Computer monitoring via rear panel USB interface |
| Power Consumption | 300mA @ 12Vdc nominal |
S5.5 Transmitters

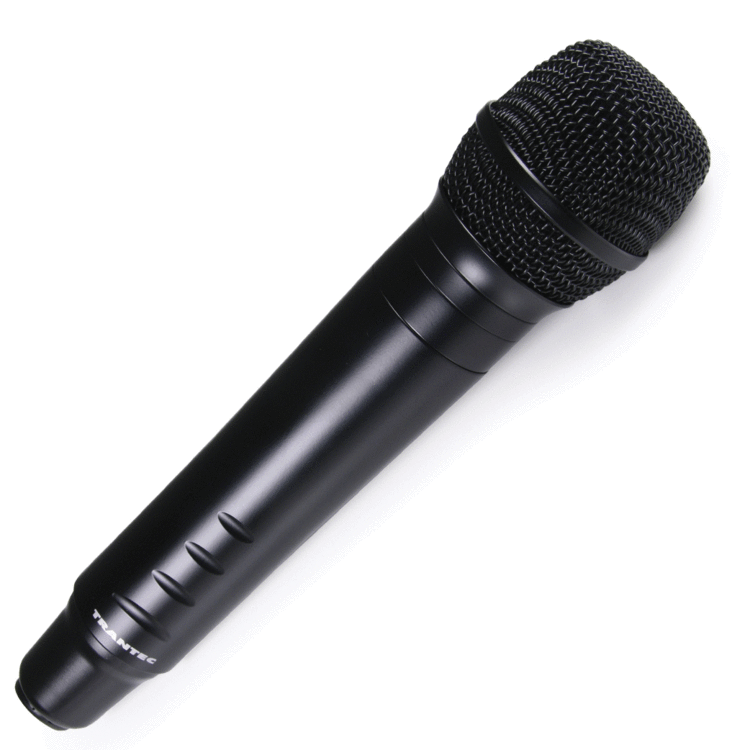

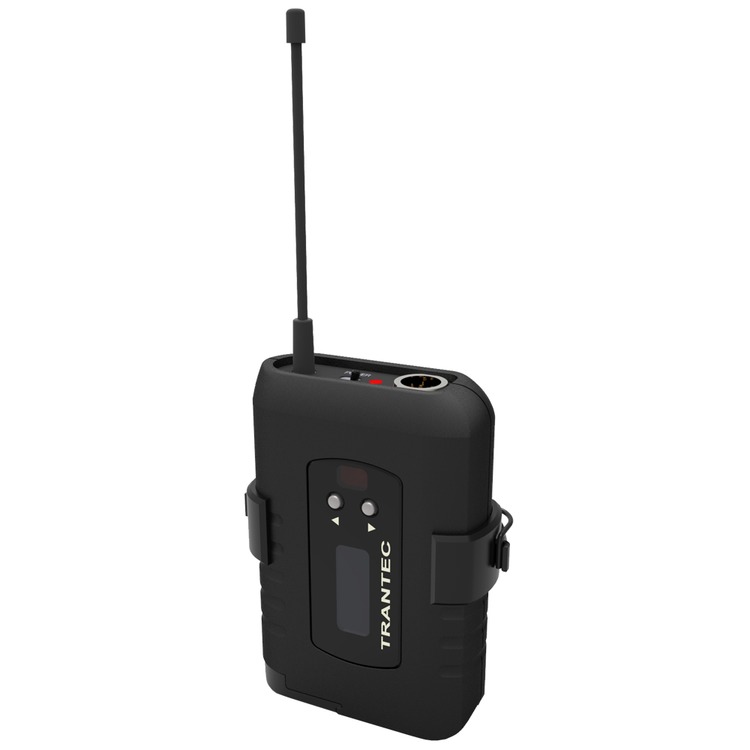

S5.5-HDX Handheld and S5.5-BTX Beltpack
| Power Supply | Single Alkaline AA cell 1.5V |
| Power Consumption | Typically 120mA |
| Handheld Microphone Element | Dynamic mic, hyper cardioid |
| Beltpack Microphone Element | Electret condenser mic |
| Operating Time | Typically 8-10hrs minimum |
| RF Carrier Power | < 50mW |
| Maximum Input Level | 146dB SPL |
| Controls | On-Off, AF Gain Adjust, Frequency Adjust, AF Mute (Handheld) |
| Gain Range | Handheld: 6 steps 6dB/Beltpack: +2dBm to -20dBm in 10 steps |
| Handheld dimensions | 32 x 250 mm (1.26” x 9.84”). Grille diameter 51mm. Weight 350g (0.77 lb) |
| Beltpack dimensions | 55 x 80 x 20mm (2.17” x 3.15” x 0.79”). Weight 110g. Enhanced clip |
| Handheld Capsules | Replaceable Dynamic/Condenser |
